Professional 1u Portable Amplifier k Series 4ch Digital Amplifiers Smart Sound Equipment
S/. 3,461.10
Product Description

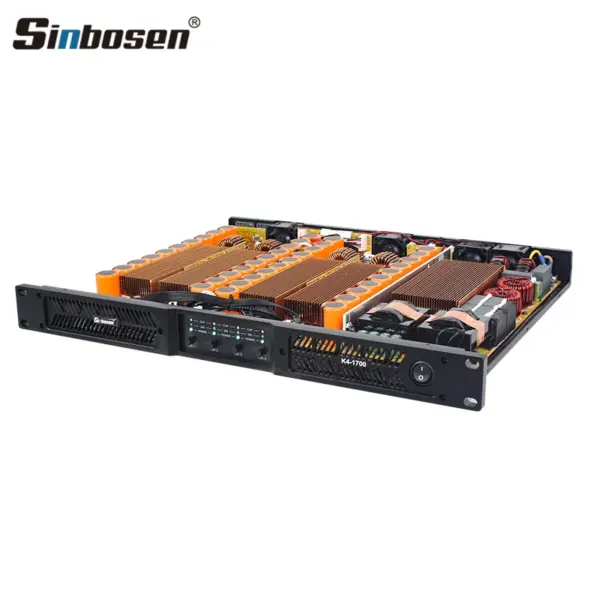

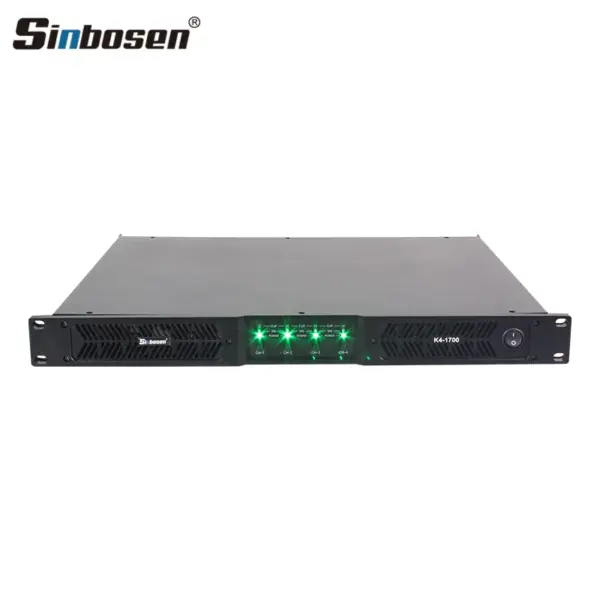

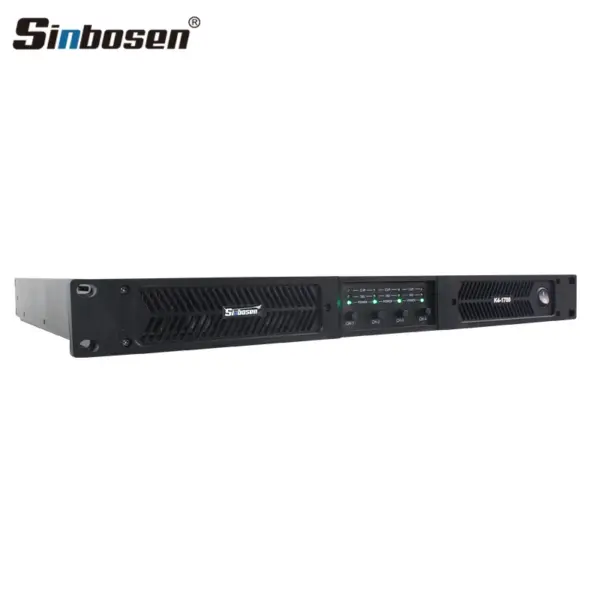

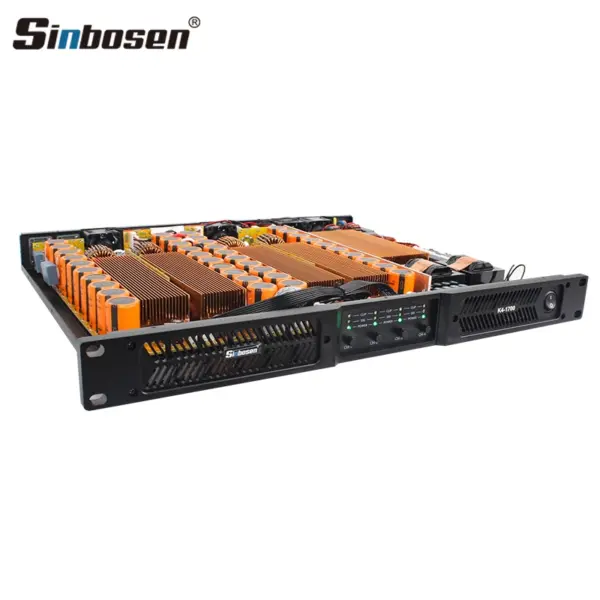

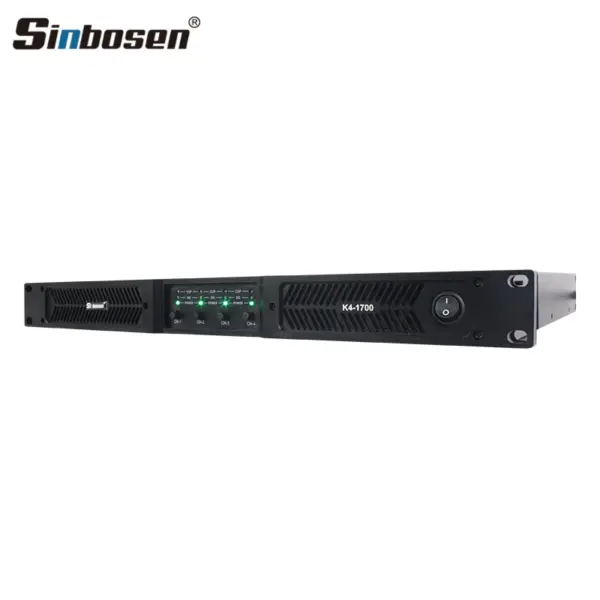

K4-17001U 4-channel power amplifier, small size, light weight, easy to install. The circuit uses a Class D power amplifier module, a reliable and efficient R-SMPS stabilized power supply system, which has extremely high efficiency and controllability, and also has extremely high power density, which can adjust the current waveform according to the AC voltage waveform. Wide voltage operation, adapt to the global scope, can carry higher power.
Digital Amplifier K4-1700 Feature:
1. Use Class D power amplifier module. Unique peak clipping limiter and ripple reduction. 2. The perfect protection system effectively reduces the losses caused by improper use. 3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear. 4. 1U design, its light weight and very small space occupation rate. 5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.
|
1U Digital Amplifier
|
K4-1700
|
|
|
8Ω/Stereo
|
4CHX1700W
|
|
|
4Ω/Stereo
|
4CHX2800W
|
|
|
2Ω/Stereo
|
2CHX3800W
|
|
|
Output Power 1 KHz, <0.05%THD
|
||
|
Class
|
Class D Power Amplifier
|
|
|
THD (20Hz-20kHz for 1W)
|
<0.1%
|
|
|
THD (1kHz and 1 dB below clipping)
|
<0.05
|
|
|
Signal Noise Ration
|
>106dB
|
|
|
Frequency Response (+/-0.1dB)
|
10Hz-34kHz
|
|
|
Damping coefficient
|
>600
|
|
|
Impedance (balanced / unbalanced)
|
20KΩ/10KΩ
|
|
|
Gain (optional)
|
0.775V/1V/32dB
|
|
|

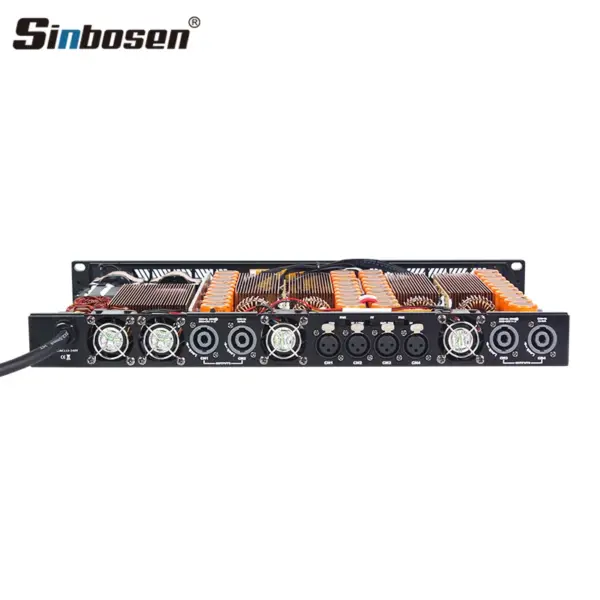

Output socket
|
Connectors
|
|
|
Input socket
|
XLR type, 3pin
|
|
|
Link socket
|
XLR type, 3pin male
|
|
|
Protection
|
Short circuit, open dircuit, thermal, overload,DC,super audio protection
|
|
|
Power Requirement
|
90-265V~50Hz(PFC)
|
|
|
Size(WxHxD)
|
483x429x44mm
|
|
|
Weight(net)
|
10.5Kg
|
|
| color | Black |
|---|
