2000W D Class Plate Amplifier for Full Range Speaker Audio Sound Equipment with DSP Audio Processor and Line Array Features
S/. 3,357.03
Project Sharing
Product Description
Digital Audio Processor
Support OEM & ODM Service, Low MOQ
|
Private Mold
|
Yes
|
|
Brand
|
NUOXUN
|
|
Model
|
LM848RTS
|
|
Place of Origin
|
Guangdong
|
|
Product Name
|
96K Digital Audio Processor
|
|
Type
|
digital
|
|
Sampling rate
|
96K
|
|
S/N ratio
|
≤112dB
|
|
Language
|
Chinese,English
|
|
Delay
|
up to 2000ms delay adjustable
|
|
6 filter types
|
Peaking, notch, low shelf…
|
|
FIR IIR
|
can be customized
|
PRODUCT INTRODUCTION:

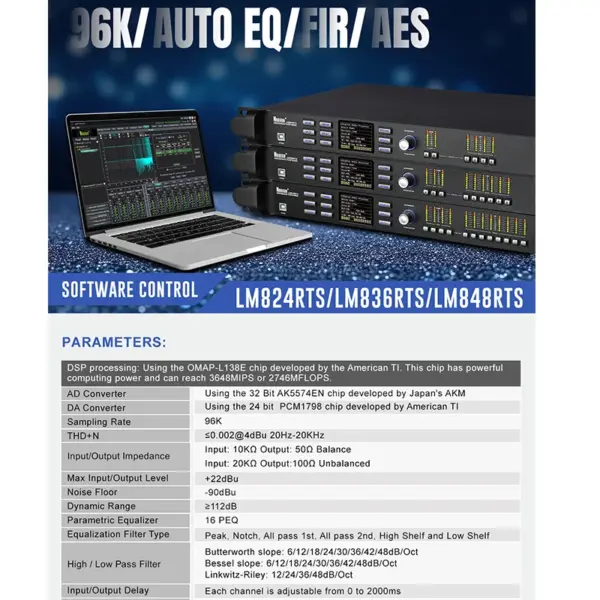

LM848RTS is a high-performance 4 input 8 output digital audio processor with 96KHz sampling rate. Audio processing is performed by 32-bit AD/24-bitDA converter and high-speed DSP processing. In addition to 16 band EQ for each input and output channel, there are also with HPF and LPF, all-pass filter, signal generator, noise gate, gain control, input compressor, output limiter, scene preset, and delay for each channel. Powerful functions such as adjustable delay up to 2000ms, equipped with network port and RS-232 can realize quick configuration and debugging. This equipment performs a series of optimizations and adjustments for high-quality sound reinforcement systems.
Features:

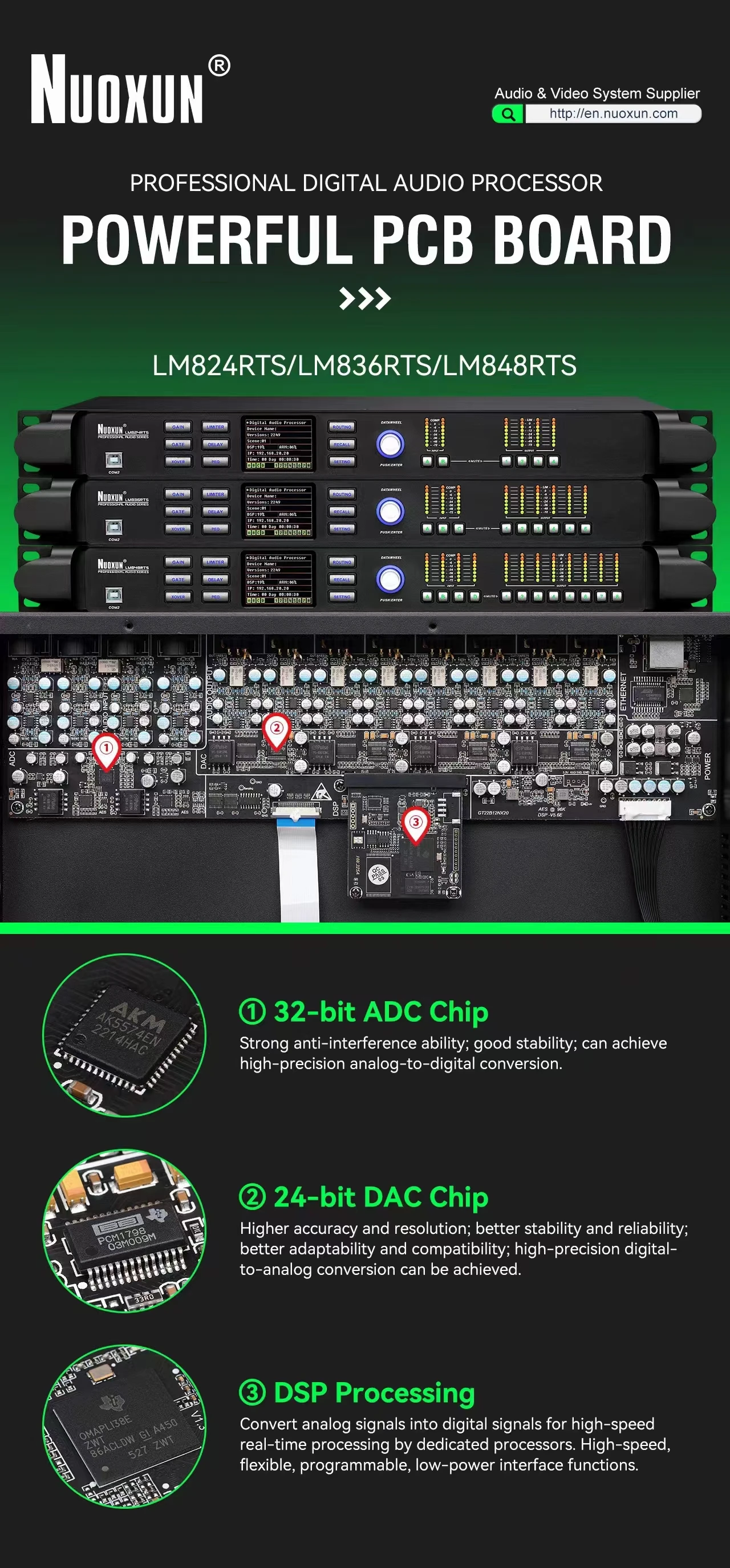

* 32-bit DSP processing, 96KHz sampling rate, 32bit ADC and 24bit DAC.
* The input processing includes: port input, AES/EBU input, noise gate, gain control, mute, phase,16-band EQ, Xover, input compression, 2000ms input adjustable delay, linkage adjustment and other processing functions.

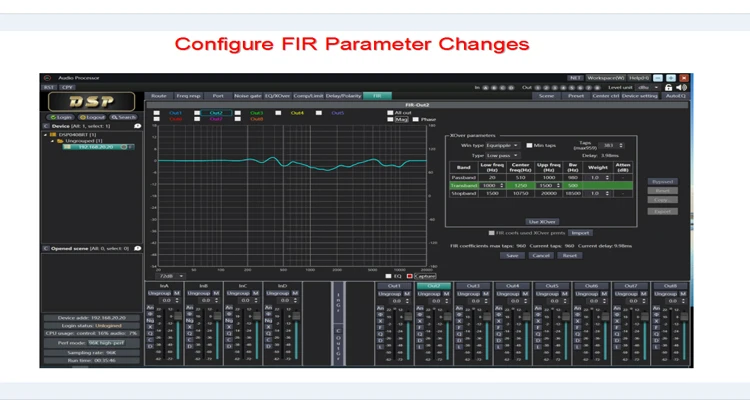

* The output processing includes: FIR filter, 16-band EQ, 2000ms adjustable output delay, gain control, mute, phase, Xover, output limit, port output, AES/EBU output, linkage adjustment and other processing functions.
* All inputs and outputs channels can be freely routing, and the name of each input and output channel can be changed.
* All input and output channels have independent phase curve adjustment function.
* Parameter settings between any channels can be freely copied, and any channel can be linked adjustment.
* All input and output channels can be auto EQ by importing channel parameters.
* There are six types of equalization: peaking, notch, all pass 1st, all pass 2nd, high shelf and low shelf.
* All input and output channels have HPF and LPF, the types are: Butterworth, Bessel, Linkwitz-Riley, the slope is optional from 6/12/18/24/30/36/42/48 dB/Oct. All input compressor have thresholds, ratios, start-up time, recovery time and compensation gain adjustable.
* All output limiter are included: threshold, recovery time can be adjusted, brick wall type limiter, starting time is 0, absolute limit.
* The delay of all input and output channels with 2000ms delay.
* Built-in signal generator, input mode can choose pink noise, white noise, sweep frequency and 20Hz-20KHz sine wave adjustable, signal amplitude adjustable.

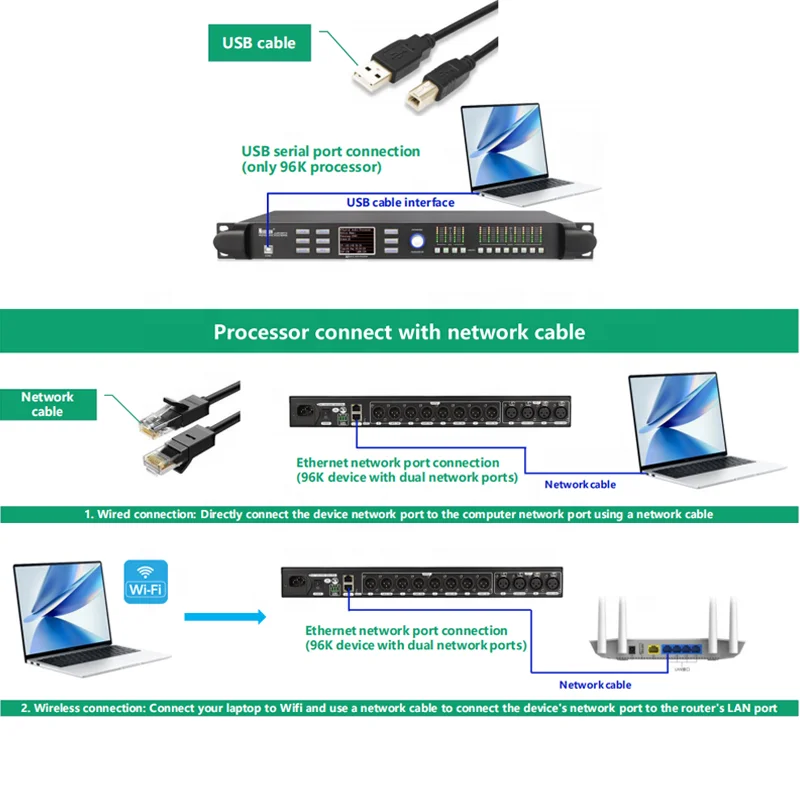

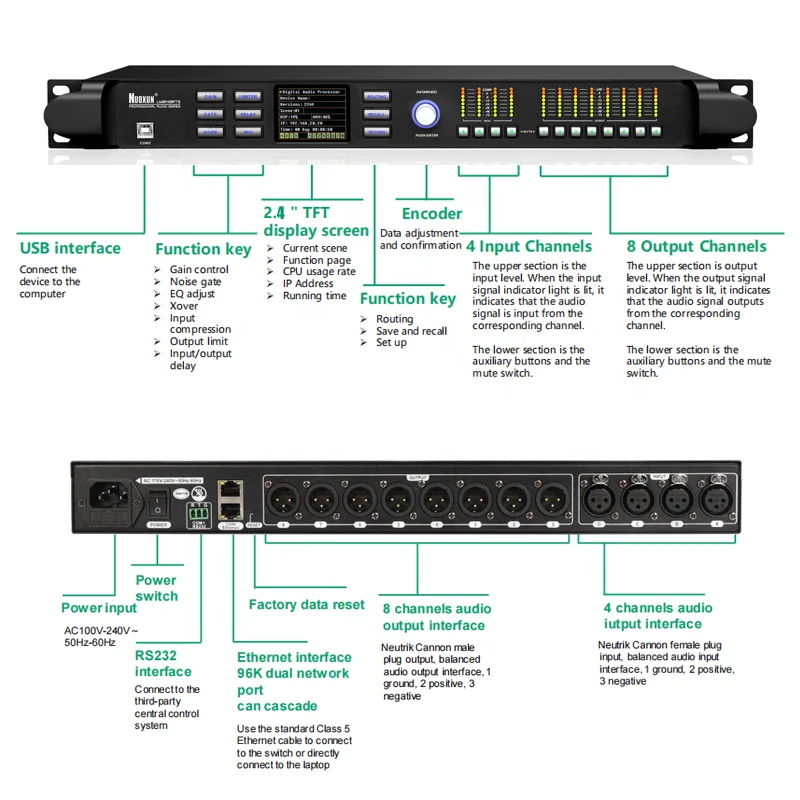

* The front panel has USB control port for serial port connection, input and output level indicator and function buttons, the rear panel has RS232 control port and the 100M network port connection. One-button connection makes the user’s operation easier and faster.
* It supports 128 preset scenes to be saved, and the device scene algorithm and each preset can be saved and loaded separately. It also has the permission management function to make the device more secure.

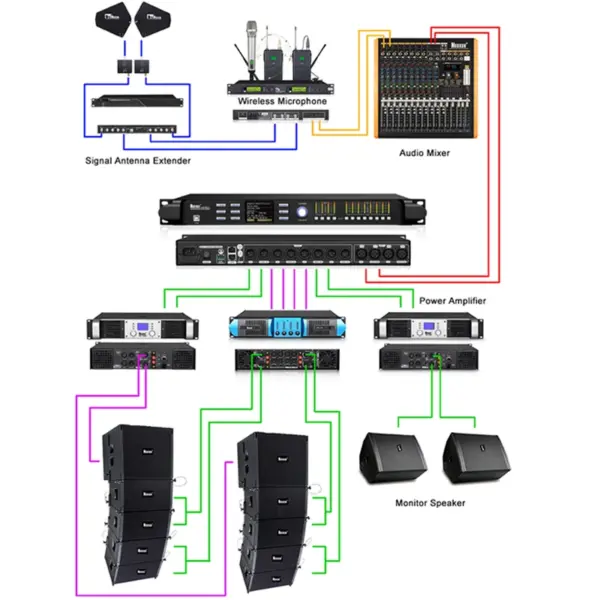

* Application: professional performances, bar, conference rooms, courtrooms, auditoriums, multi-function halls, etc.
* The input processing includes: port input, AES/EBU input, noise gate, gain control, mute, phase,16-band EQ, Xover, input compression, 2000ms input adjustable delay, linkage adjustment and other processing functions.
* The output processing includes: FIR filter, 16-band EQ, 2000ms adjustable output delay, gain control, mute, phase, Xover, output limit, port output, AES/EBU output, linkage adjustment and other processing functions.
* All inputs and outputs channels can be freely routing, and the name of each input and output channel can be changed.
* All input and output channels have independent phase curve adjustment function.
* Parameter settings between any channels can be freely copied, and any channel can be linked adjustment.
* All input and output channels can be auto EQ by importing channel parameters.
* There are six types of equalization: peaking, notch, all pass 1st, all pass 2nd, high shelf and low shelf.
* All input and output channels have HPF and LPF, the types are: Butterworth, Bessel, Linkwitz-Riley, the slope is optional from 6/12/18/24/30/36/42/48 dB/Oct. All input compressor have thresholds, ratios, start-up time, recovery time and compensation gain adjustable.
* All output limiter are included: threshold, recovery time can be adjusted, brick wall type limiter, starting time is 0, absolute limit.
* The delay of all input and output channels with 2000ms delay.
* Built-in signal generator, input mode can choose pink noise, white noise, sweep frequency and 20Hz-20KHz sine wave adjustable, signal amplitude adjustable.
* The front panel has USB control port for serial port connection, input and output level indicator and function buttons, the rear panel has RS232 control port and the 100M network port connection. One-button connection makes the user’s operation easier and faster.
* It supports 128 preset scenes to be saved, and the device scene algorithm and each preset can be saved and loaded separately. It also has the permission management function to make the device more secure.
* Application: professional performances, bar, conference rooms, courtrooms, auditoriums, multi-function halls, etc.

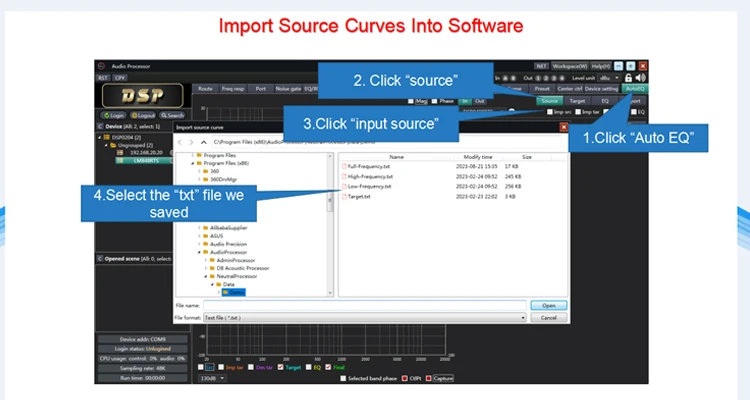

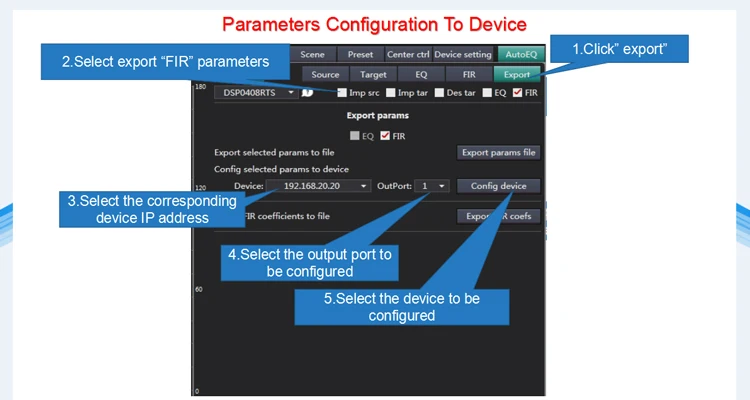

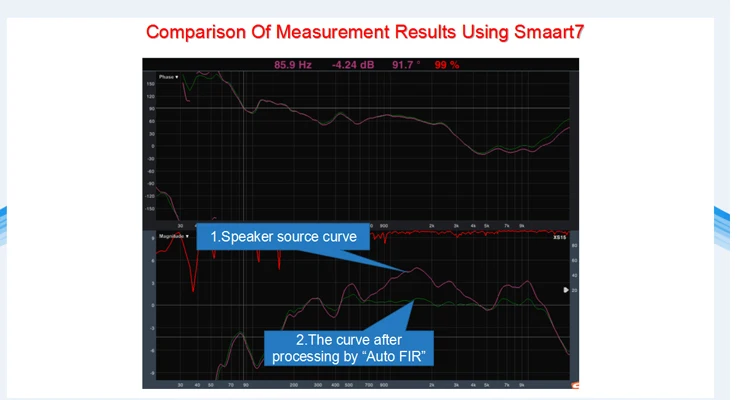

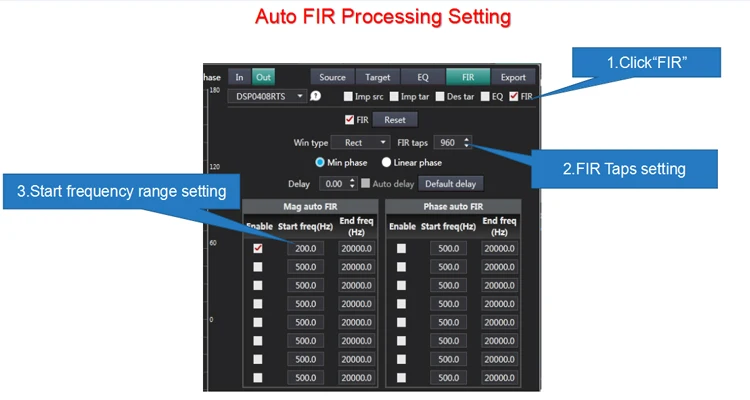

* Auto EQ: According to the customized design parameters, our powerful algorithm can achieve one-click generation of the adjustment parameters of the target curve.
*The target curve can be uploaded or designed with our AUTO EQ.
Ready to take your PA sound to the next level
Customized your own solution:
Whatsapp & Wechat: +8613326825017 Hannah
Whatsapp & Wechat: +8613326825017 Hannah
Home Page – Signal generator – Noise Gate – PEQ – Input Compressor and Output Limiter – Input and Output Delay – Router – FIR Filiter (ONLY for LMXXXRT/RTS Series) – Scene- Preset – Device Setting
